GitHub Actions Build System

GitHub Workflows

This section provides templates/examples of what a GitHub Actions workflow file could look like when using CDK Express Pipeline. These examples are meant to be used as a starting point and can be customized to fit your specific needs.

Workflows can be generated automatically

CDK Express Pipeline includes built-in generation that automatically creates GitHub Actions workflows based on your pipeline configuration. See the Generating GitHub Workflows section below for more details.

These examples all assume a project created with the default structure of the CDK CLI command cdk init app --language typescript. These templates are taken from the demo TS project: https://github.com/rehanvdm/cdk-express-pipeline-demo-ts and can be found in the .github/workflows-manual directory of that project.

.github/workflows/diff.yml

Does a build and CDK Diff on PR open and push, the cdk diff output can be viewed in the action run logs.

name: Diff
on:
  pull_request:
    types: [ opened, synchronize ]
  workflow_dispatch: { }

env:
  FORCE_COLOR: 1

jobs:
  deploy:
    name: CDK Diff and Deploy
    runs-on: ubuntu-latest
    permissions:
      actions: write
      contents: read
      id-token: write
    steps:
      - name: Checkout repo
        uses: actions/checkout@v4

      - name: Set up node
        uses: actions/setup-node@v3
        with:
          node-version: 20
          cache: npm

      - name: Install dependencies
        run: npm install ci

      # TODO: Alternatively use an AWS IAM user and set the credentials in GitHub Secrets (less secure than GH OIDC below)
      - name: Configure AWS credentials
        uses: aws-actions/configure-aws-credentials@v4
        with:
          role-to-assume: # TODO: Your role to assume
          aws-region: # TODO: your region

      - name: CDK diff
        run: npm run cdk -- diff '**'

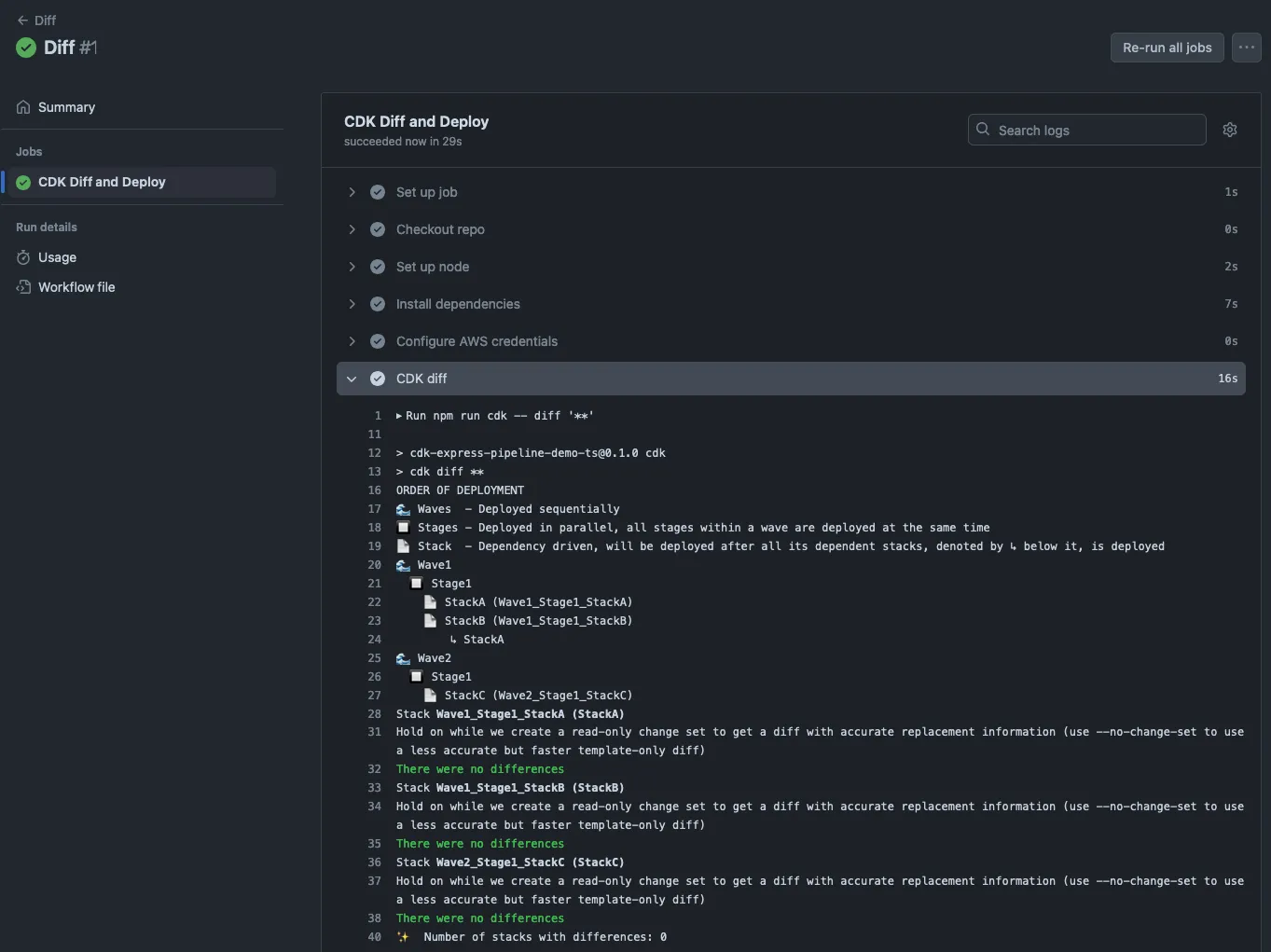

Produces the following output in the GitHub Action logs:

.github/workflows/deploy.yml

Does a build, CDK Diff and Deploy when a push happens on the main branch.

name: Deploy
on:
  push:
    branches:
      - main

env:
  FORCE_COLOR: 1

jobs:
  deploy:
    name: CDK Diff and Deploy
    runs-on: ubuntu-latest
    permissions:
      actions: write
      contents: read
      id-token: write
    steps:
      - name: Checkout repo
        uses: actions/checkout@v4

      - name: Set up node
        uses: actions/setup-node@v3
        with:
          node-version: 20
          cache: npm

      - name: Install dependencies
        run: npm install ci

      # TODO: Alternatively use an AWS IAM user and set the credentials in GitHub Secrets (less secure than GH OIDC below)
      - name: Configure AWS credentials
        uses: aws-actions/configure-aws-credentials@v4
        with:
          role-to-assume: # TODO: Your role to assume
          aws-region: # TODO: your region

      - name: CDK diff
        run: npm run cdk -- diff '**'

      - name: CDK deploy
        run: npm run cdk -- deploy '**' --require-approval never --concurrency 10

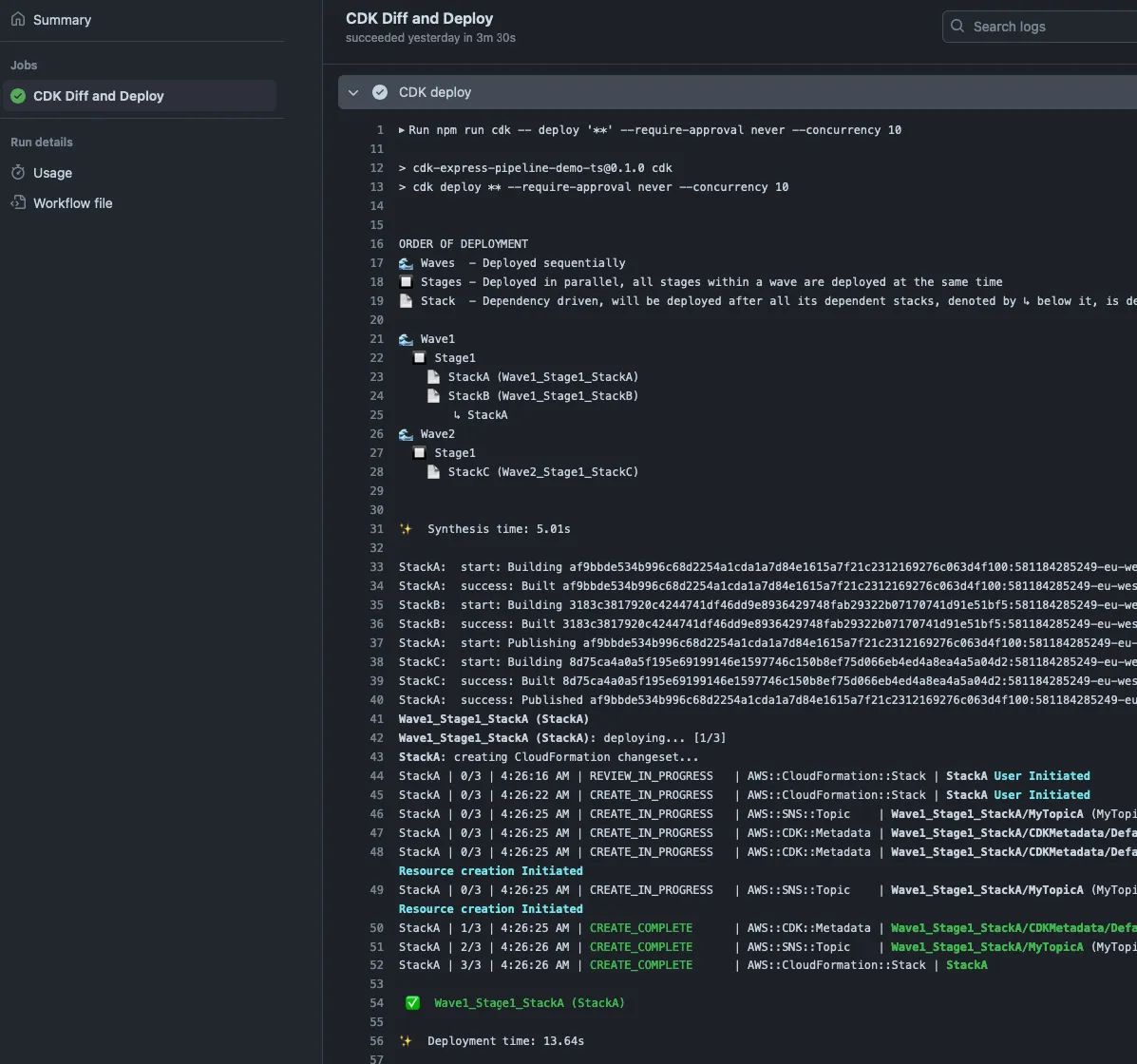

Produces the following output in the GitHub Action logs:

.github/workflows/deploy-advance.yml

The synth job builds the CDK app and saves the cloud assembly to the ./cloud_assembly_output directory. The whole repo with installed NPM packages and the cloud assembly is then cached. This job of the pipeline does not have access to any AWS Secrets, the installing of packages and building is decoupled from the deployment improving security.

The wave1 and wave2 jobs fetches the cloud assembly from the cache and then does a CDK Diff and Deploy on only their stacks. The wave1 job targets all the stacks that start with Wave1_ and the wave2 job targets all the stacks that start with Wave2_. It is important to add the --exclusively flag to only focus on the specified stacks and not its dependencies.

name: Deploy Advance
on:
  push:
    branches:
      - main
  workflow_dispatch: { } # While testing only

env:
  FORCE_COLOR: 1

jobs:
  synth:
    name: Build and CDK Synth
    runs-on: ubuntu-latest
    permissions:
      actions: write

      contents: read
      id-token: write
    steps:
      - name: Checkout repo
        uses: actions/checkout@v4

      - name: Set up node
        uses: actions/setup-node@v3
        with:
          node-version: 20
          cache: npm

      - name: Install dependencies
        run: npm install ci

      - name: CDK Synth
        run: npm run cdk -- synth --output ./cloud_assembly_output

      - name: Cache CDK Assets
        uses: actions/cache/save@v4
        with:
          path: ./
          key: "cdk-assets-${{ github.sha }}"

  wave1:
    name: Wave 1
    needs:
      - synth
    runs-on: ubuntu-latest
    permissions:
      actions: write
      contents: read
      id-token: write
    steps:
      - name: Fetch CDK Assets
        uses: actions/cache/restore@v4
        with:
          path: ./
          key: "cdk-assets-${{ github.sha }}"

      - name: Configure AWS credentials
        uses: aws-actions/configure-aws-credentials@v4
        with:
          role-to-assume: arn:aws:iam::581184285249:role/githuboidc-git-hub-deploy-role
          aws-region: eu-west-1

      - name: CDK diff
        run: npm run cdk -- diff 'Wave1_*' --exclusively --app ./cloud_assembly_output

      - name: CDK deploy
        run: npm run cdk -- deploy 'Wave1_*' --require-approval never --concurrency 10 --exclusively --app ./cloud_assembly_output

  # Manual approval

  wave2:
    name: Wave 2
    needs:
      - wave1
    runs-on: ubuntu-latest
    permissions:
      actions: write
      contents: read
      id-token: write
    steps:
      - name: Fetch CDK Assets
        uses: actions/cache/restore@v4
        with:
          path: ./
          key: "cdk-assets-${{ github.sha }}"

      # TODO: Alternatively use an AWS IAM user and set the credentials in GitHub Secrets (less secure than GH OIDC below)
      - name: Configure AWS credentials
        uses: aws-actions/configure-aws-credentials@v4
        with:
          role-to-assume: # TODO: Your role to assume
          aws-region: # TODO: your region

      - name: CDK diff
        run: npm run cdk -- diff 'Wave2_*' --exclusively --app ./cloud_assembly_output

      - name: CDK deploy
        run: npm run cdk -- deploy 'Wave2_*' --require-approval never --concurrency 10 --exclusively --app ./cloud_assembly_output

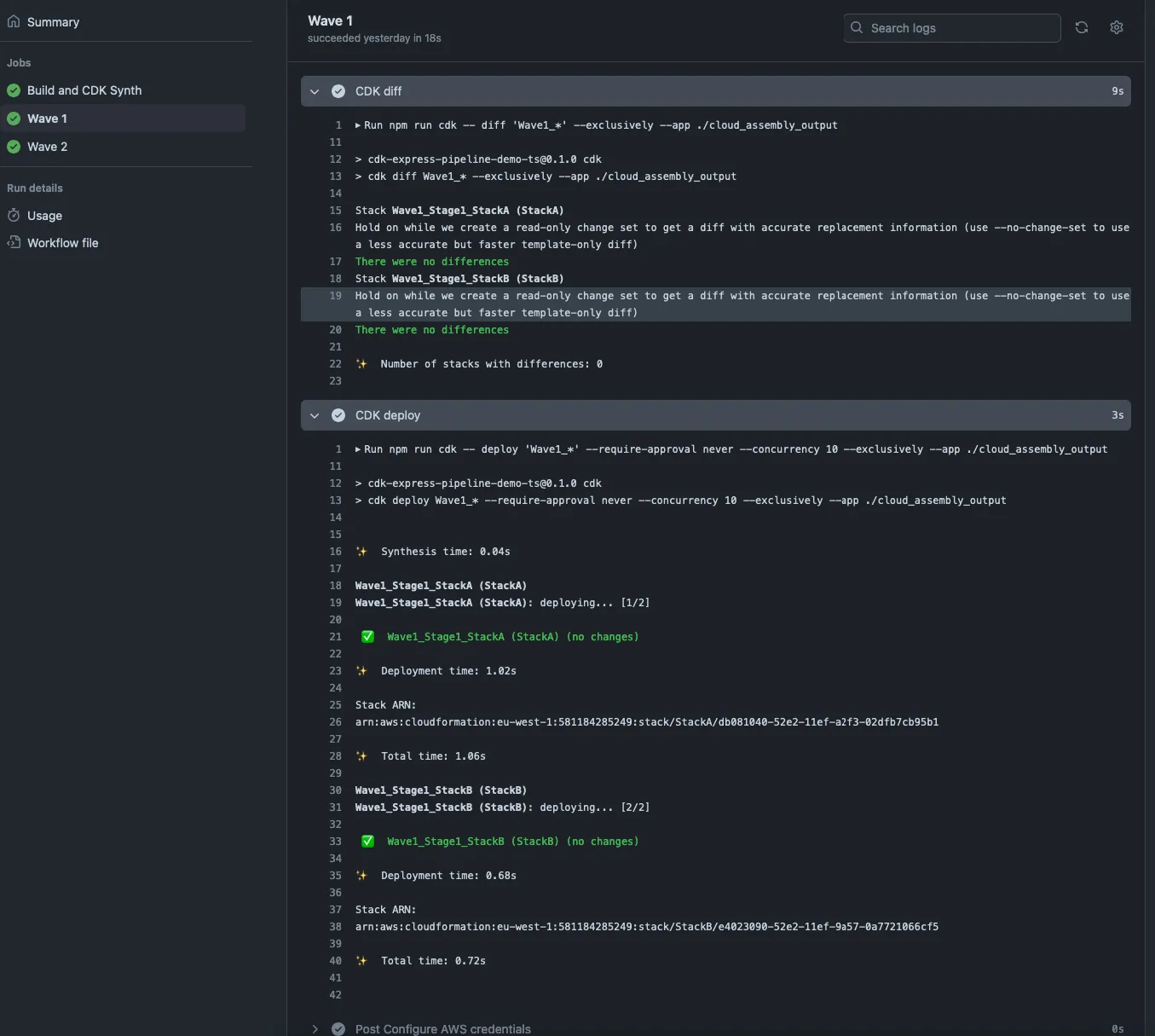

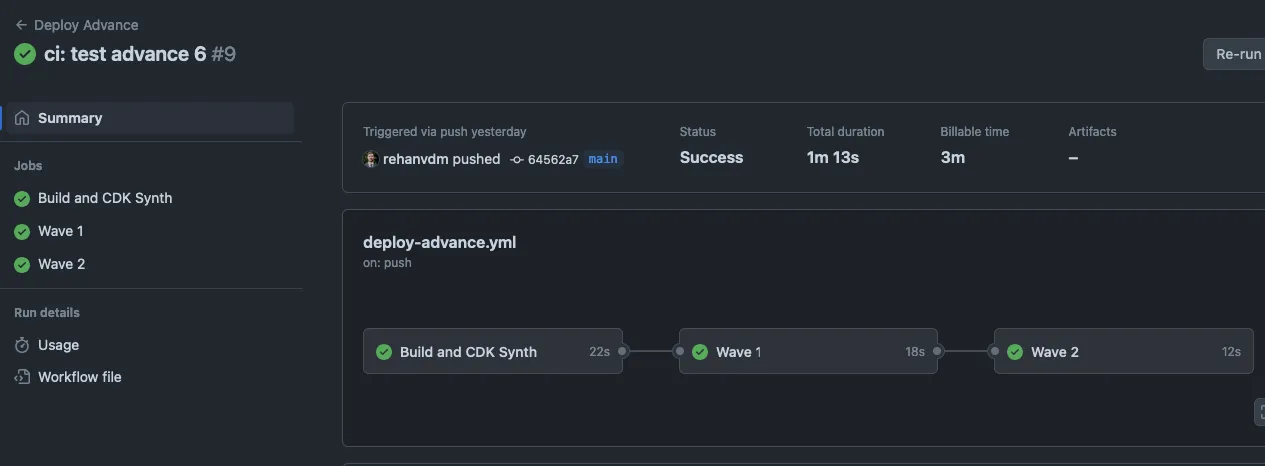

Produces the following output in the GitHub Action logs:

Generating GitHub Workflows

CDK Express Pipeline includes built-in GitHub CI workflow generation that automatically create GitHub Actions workflows based on your pipeline configuration. This feature eliminates the need to manually write and maintain GitHub workflow files.

Basic Usage

To generate GitHub workflows, you need to specify a GitHubWorkflowConfig object when calling the generateGitHubWorkflows method on your CdkExpressPipeline instance. This configuration defines how the workflows should be structured, including build, synth, diff, and deploy commands.

This basic example assumes that you only have one environment/AWS account named prod. A CDK diff will be created on pull request to the main branch, and a CDK deploy will be created on push action to the main branch. You can customize the configuration to suit your needs, including multiple environments, custom build processes, and more.

import { CdkExpressPipeline, GitHubWorkflowConfig } from 'cdk-express-pipeline';

// Define your pipeline (as shown in Usage section)
const app = new App();
const pipeline = new CdkExpressPipeline();
// ... add waves, stages, and stacks ...

// Define GitHub workflow configuration
const ghConfig: GitHubWorkflowConfig = {
  synth: {
    buildConfig: {
      type: 'preset-npm', // or 'workflow' to specify a GitHub workflow file for custom build process
    },
    commands: [
      { prod: "npm run cdk -- synth '**'" },
    ],
  },
  diff: [{
    on: {
      pullRequest: {
        branches: ['main'],
      },
    },
    stackSelector: 'stage',
    writeAsComment: true,
    assumeRoleArn: 'arn:aws:iam::123456789012:role/github-oidc-role',
    assumeRegion: 'us-east-1',
    commands: [
      { prod: 'npm run cdk -- diff {stackSelector}' },
    ],
  }],
  deploy: [{
    on: {
      push: {
        branches: ['main'],
      },
    },
    stackSelector: 'stage',
    assumeRoleArn: 'arn:aws:iam::123456789012:role/github-oidc-role',
    assumeRegion: 'us-east-1',
    commands: [
      { prod: 'npm run cdk -- deploy {stackSelector} --concurrency 10 --require-approval never --exclusively' },
    ],
  }],
};

// Generate workflows and save them (by specifying the `true` argument)
await pipeline.generateGitHubWorkflows(ghConfig, true);

The workflow generation creates the following files in your .github directory:

.github/
├── actions/
│   ├── cdk-express-pipeline-synth/
│   │   └── action.yml
│   ├── cdk-express-pipeline-diff/
│   │   └── action.yml
│   └── cdk-express-pipeline-deploy/
│       └── action.yml
└── workflows/
    ├── cdk-express-pipeline-diff.yml
    └── cdk-express-pipeline-deploy-prod.yml

Configuration Options

Synth Configuration

The synth configuration defines how your CDK application is built and synthesized:

synth: {
  buildConfig: {
    type: 'preset-npm', // Built-in npm build process
    // OR
    type: 'workflow',
    workflow: {
      path: '.github/actions/build', // Path to custom workflow
    },
  },
  commands: [
    { prod: "npm run cdk -- synth '**'" },
  ],
}

The buildConfig can use a built-in preset (like preset-npm) which uses the standard NPM build process GitHub Action steps, installing node and then npm install. Alternatively, you can specify a reusable action that defines a custom workflow in native GitHub Actions format, allowing for a more complex build processes. Like building assets in parallel, pushing to container registries etc. For example:

.github/actions/build/action.yml

name: Custom Build
description: Only needed if Synth build step is set to 'workflow'. When able, use the `preset-` instead
runs:
  using: composite
  steps:
    - name: Set up node
      uses: actions/setup-node@v4
      with:
        node-version: 20
        cache: npm
    - name: Install dependencies
      run: npm ci
      shell: bash

    # Additional steps to build Applications that are referenced in the CDK app

The commands array defines the commands to run for synthesizing your CDK application. This allows you to generate multiple CDK cloud assemblies for different environments (e.g., dev, prod) by using environment-specific commands.

This example assumes this is done with env CDK context variable and shows how to generate two different cloud assemblies for dev and prod environments and store there output in separate directories within the cdk.out directory.

IMPORTANT

These commands must still place these cloud assemblies in the cdk.out directory. The cdk.out and node_modules will be cached and restored on workflow jobs within diff and deploy.

synth: {
  commands: [
    {dev: "npm run cdk -- synth '**' -c env=dev --output=cdk.out/dev"},
    {prod: "npm run cdk -- synth '**' -c env=prod --output=cdk.out/prod"},
  ]
}

Diff Configuration

The diff configuration defines when and how CDK diff operations are performed:

diff: [{
  on: {
    pullRequest: {
      branches: ['main', 'develop'],
    },
    // OR
    push: {
      branches: ['main'],
    },
  },
  stackSelector: 'stage', // 'wave', 'stage', or 'stack'
  writeAsComment: true, // Write diff output as PR comment
  assumeRoleArn: 'arn:aws:iam::123456789012:role/github-oidc-role',
  assumeRegion: 'us-east-1',
  commands: [
    { prod: 'npm run cdk -- diff {stackSelector}' },
  ],
}]

IMPORTANT

These commands must include the {stackSelector} string that gets replaced dynamically.

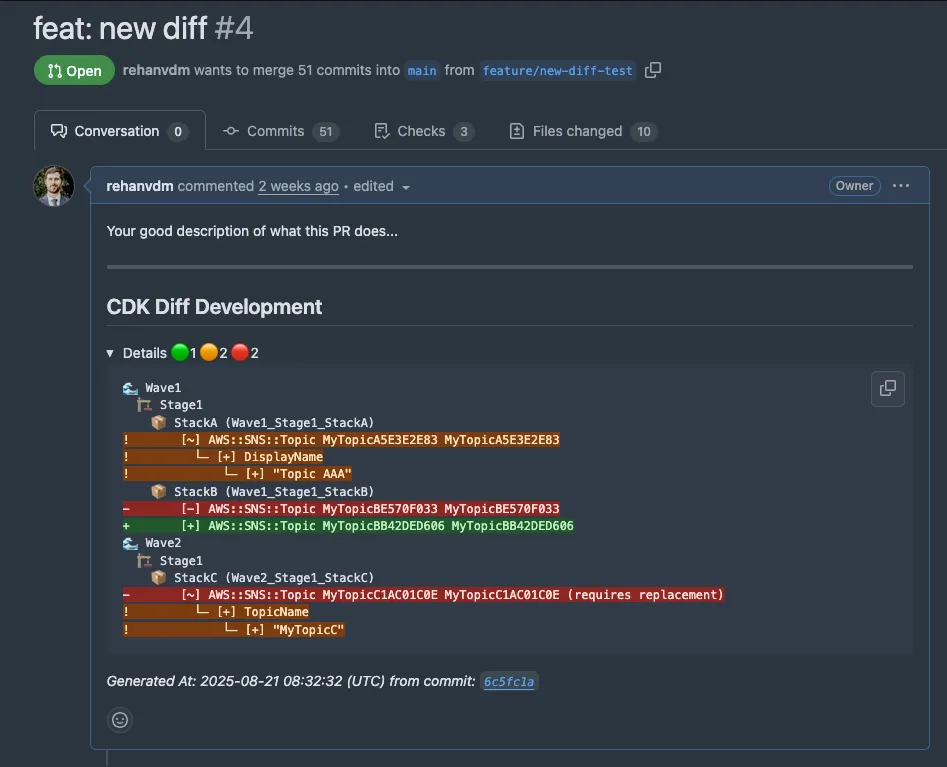

The on field specifies the events that trigger the diff operation, you would most likely always want to trigger this on pull requests. The writeAsComment property uses the corymhall/cdk-diff-action@v2 Action to write the diff output as a comment on the pull request. This is useful for reviewing changes before merging.

See the Stack Selectors section below for details on the stackSelector option. The assumeRoleArn and assumeRegion options are used to configure the AWS OIDC authentication for the GitHub Actions workflow, allowing it to assume a role in your AWS account securely when doing commands.

Deploy Configuration

The deploy configuration defines when and how CDK deploy operations are performed:

deploy: [{
  on: {
    pullRequest: {
      branches: ['main'],
    },
  },
  stackSelector: 'stack', // 'wave', 'stage', or 'stack'
  assumeRoleArn: 'arn:aws:iam::123456789012:role/github-oidc-role',
  assumeRegion: 'us-east-1',
  commands: [
    { prod: 'npm run cdk -- deploy {stackSelector} --concurrency 10 --require-approval never --exclusively' },
  ],
}]

IMPORTANT

These commands must include the {stackSelector} string that gets replaced dynamically.

The on field specifies the events that trigger the deploy operation, you would most likely always want to trigger this on pushes or on tag creation.

See the Stack Selectors section below for details on the stackSelector option. The assumeRoleArn and assumeRegion options are used to configure the AWS OIDC authentication for the GitHub Actions workflow, allowing it to assume a role in your AWS account securely when doing the commands.

Stack Selectors

The stackSelector option determines how stacks are targeted in diff and deploy operations:

• 'wave': Will create a GitHun Job in the Workflow for each wave (e.g., Wave1_*)
• 'stage': Will create a GitHun Job in the Workflow for each wave and stage combination (e.g., Wave1_Stage1_*)
• 'stack': Will create a GitHun Job in the Workflow for each wave, stage and stack combination (e.g., Wave1_Stage1_Stack1)

The {stackSelector} placeholder in commands is automatically replaced with the appropriate pattern as shown above.

Using stack is the most granular, but it will spawn a separate job for each stack, which may not be ideal for larger pipelines as this adds a bit of overhead. Each job needs to fetch the cdk.out (cloud assembly) and node_modules from the cache, which can add additional time, and thus cost. This might become an issue in pipelines with large assets and many stacks.

Recommended defaults:

• diff config: 'stage' is a good balance between granularity and performance as each job will post a GitHub comment if writeAsComment is set to true.
• deploy config: 'stack' is recommended so that each job only shows the CFN deployment logs for that stack and the job can be retried if it fails without affecting other stacks.

Advanced Features

Multiple Environments

Both diff and deploy configurations accept arrays. This allows you to define multiple workflows for different environments or deployment strategies.

This example:

• Assumes that the main branch is linked to the development AWS environment/account and the prod branch is linked to the production environment.
• Does both staging and production diffs on PRs to the main branch. So that we can also see the changes that will be deployed to production when making this PR to staging.
• Does a production diff on PRs to the production branch.
• Defines separate deploy workflows for development and production when pushing to the main and production branches, respectively.

const ghConfig: GitHubWorkflowConfig = {
 synth: {
   buildConfig: {
     type: 'preset-npm',
   },
   commands: [
     { development: "npm run cdk -- synth '**' -c env=development --output=cdk.out/development" },
     { production: "npm run cdk -- synth '**' -c env=production --output=cdk.out/production" },
   ],
 },
 diff: [
   {
     id: 'development',
     on: {
       pullRequest: {
         branches: ['main'],
       },
     },
     stackSelector: 'stage',
     writeAsComment: true,
     assumeRoleArn: 'arn:aws:iam::123456789012:role/github-oidc-role',
     assumeRegion: 'us-east-1',
     commands: [
       { development: 'npm run cdk -- diff {stackSelector} --app=cdk.out/development' },
       { production: 'npm run cdk -- diff {stackSelector} --app=cdk.out/production' },
     ],
   },
   {
     id: 'production',
     on: {
       pullRequest: {
         branches: ['production'],
       },
     },
     stackSelector: 'stage',
     writeAsComment: true,
     assumeRoleArn: 'arn:aws:iam::123456789012:role/github-oidc-role',
     assumeRegion: 'us-east-1',
     commands: [
       { production: 'npm run cdk -- diff {stackSelector} --app=cdk.out/production' },
     ],
   },
 ],
 deploy: [
   {
     id: 'development',
     on: {
       push: {
         branches: ['main'],
       },
     },
     stackSelector: 'stack',
     assumeRoleArn: 'arn:aws:iam::123456789012:role/github-oidc-role',
     assumeRegion: 'us-east-1',
     commands: [
       { development: 'npm run cdk -- deploy {stackSelector} --concurrency 10 --require-approval never --exclusively --app=cdk.out/development' },
     ],
   },
   {
     id: 'production',
     on: {
       push: {
         branches: ['production'],
       },
     },
     stackSelector: 'stack',
     assumeRoleArn: 'arn:aws:iam::123456789012:role/github-oidc-role',
     assumeRegion: 'us-east-1',
     commands: [
       { production: 'npm run cdk -- deploy {stackSelector} --concurrency 10 --require-approval never --exclusively --app=cdk.out/production' },
     ],
   },
 ],
}

The ids for the diff and deploy objects are used to generate unique workflow file names in the .github/workflows directory. For example, these files will be generated (along with the reusable actions in the .github/actions directory):

.github/
├── actions/
│   ├── cdk-express-pipeline-synth/
│   │   └── action.yml
│   ├── cdk-express-pipeline-diff/
│   │   └── action.yml
│   └── cdk-express-pipeline-deploy/
│       └── action.yml
└── workflows/
    ├── cdk-express-pipeline-diff-development.yml
    ├── cdk-express-pipeline-diff-production.yml
    ├── cdk-express-pipeline-deploy-development.yml
    └── cdk-express-pipeline-deploy-production.yml

Customization (Escape hatches)

The generated workflows can be customized using JSON Patch operations:

import { CdkExpressPipeline, GitHubWorkflowConfig } from 'cdk-express-pipeline';

// Define your pipeline (as shown in Usage section)
const app = new App();
const pipeline = new CdkExpressPipeline();
// ... add waves, stages, and stacks ...

// Define GitHub workflow configuration
const ghConfig: GitHubWorkflowConfig = {
  ...
};

const ghWorkflows = await pipeline.generateGitHubWorkflows(ghConfig, false);
for (let w = 0; w < ghWorkflows.length; w++) {
  if (ghWorkflows[w].fileName === 'workflows/cdk-express-pipeline-deploy-dev.yml') {
    ghWorkflows[w]?.content.patch(
      // Change the concurrency of the deploy dev workflow
      JsonPatch.replace('/concurrency/cancel-in-progress', true),
      //Add an extra step to the build job that echos success
      JsonPatch.add('/jobs/build/steps/-', {
        name: 'Echo Success',
        shell: 'bash',
        run: 'echo "Build succeeded!"',
      }),
    );
  }
}

pipeline.saveGitHubWorkflows(ghWorkflows);

The JSON object of the workflow can be modified using the JsonPatch class, which provides the following methods:

• add(path, value): Adds a value to an object or inserts it into an array. In the case of an array, the value is inserted before the given index. The - character can be used instead of an index to insert at the end of an array. Ex: JsonPatch.add('/milk', true) JsonPatch.add('/biscuits/1', { "name": "Ginger Nut" })
• remove(path): Removes a value from an object or array. Ex: JsonPatch.remove('/biscuits') JsonPatch.remove('/biscuits/0')
• replace(path, value): Replaces a value. Equivalent to a “remove” followed by an “add”. Ex: JsonPatch.replace('/biscuits/0/name', 'Chocolate Digestive')
• copy(from, path): Copies a value from one location to another within the JSON document. Both from and path are JSON Pointers. Ex: JsonPatch.copy('/biscuits/0', '/best_biscuit')
• move(from, path): Moves a value from one location to the other. Both from and path are JSON Pointers. Ex: JsonPatch.move('/biscuits', '/cookies')
• test(path, value): Tests that the specified value is set in the document. If the test fails, then the patch as a whole should not apply. Ex: JsonPatch.test('/best_biscuit/name', 'Choco Leibniz')
